5 years warranty 50w 80w 100w 150w 240w led street light, IP66 waterproof 3000k 6000k city led road lighting
Model Number : EK-LD2301
ຊື່ຜະລິດຕະພັນ: ຮ່າງກາຍແສງສະຫວ່າງຖະຫນົນ
Recommend the Watts: : 20w 60w 80w 100w 150w 200w 240w
ດັດຊະນີກັນນໍ້າ: IP66 IP67
ດັດຊະນີປ້ອງກັນແຜ່ນດິນໄຫວ: IK08 IK09
ອຸນຫະພູມເຮັດວຽກ (℃): -20-60
ສີພື້ນຜິວ: ສີຂີ້ເຖົ່າເຂັ້ມ, ສີຂີ້ເຖົ່າອ່ອນ, ສີດໍາ, ປັບແຕ່ງແລະອື່ນໆ
Contain Accessories : Complete finished street lights
ຄຸນສົມບັດຜະລິດຕະພັນ
- ອະລູມິນຽມ bodyis ເຮັດຈາກ ADC12 ອະລູມິນຽມ Die-casting, ດ້ານການປິ່ນປົວໂດຍການສີດພົ່ນສີເພື່ອປ້ອງກັນການກັດກ່ອນແລະສີຄົງທົນ.
- ການອອກແບບແຜ່ນ Heatsink ພື້ນທີ່ຂະຫນາດໃຫຍ່ສໍາລັບທິດສະດີໄວໃນເງື່ອນໄຂຂອງ convection ລະຫວ່າງອາກາດເຢັນແລະຮ້ອນ, ເພື່ອຮັກສາການກະຈາຍຄວາມຮ້ອນທີ່ດີຂອງໂຄມໄຟແລະເພີ່ມແສງສະຫວ່າງຕະຫຼອດຊີວິດ.
- ກ່ອງຜູ້ສະຫນອງພະລັງງານເພື່ອຮັກສາໂຄມໄຟໃຫ້ສົມບູນແລະເປັນເອກະພາບ.
- ການອອກແບບລະບາຍອາກາດເພື່ອປ້ອງກັນຂີ້ຝຸ່ນ & ປ້ອງກັນນ້ໍາຄົງທີ່ເພື່ອບັນລຸເວລາທີ່ມີແສງສະຫວ່າງ.

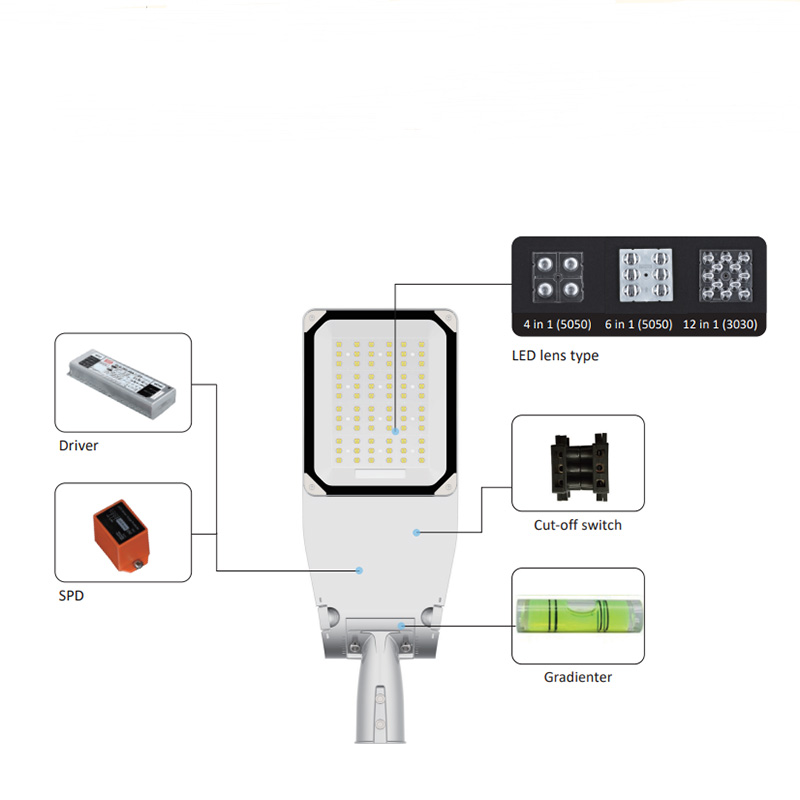

Product Details

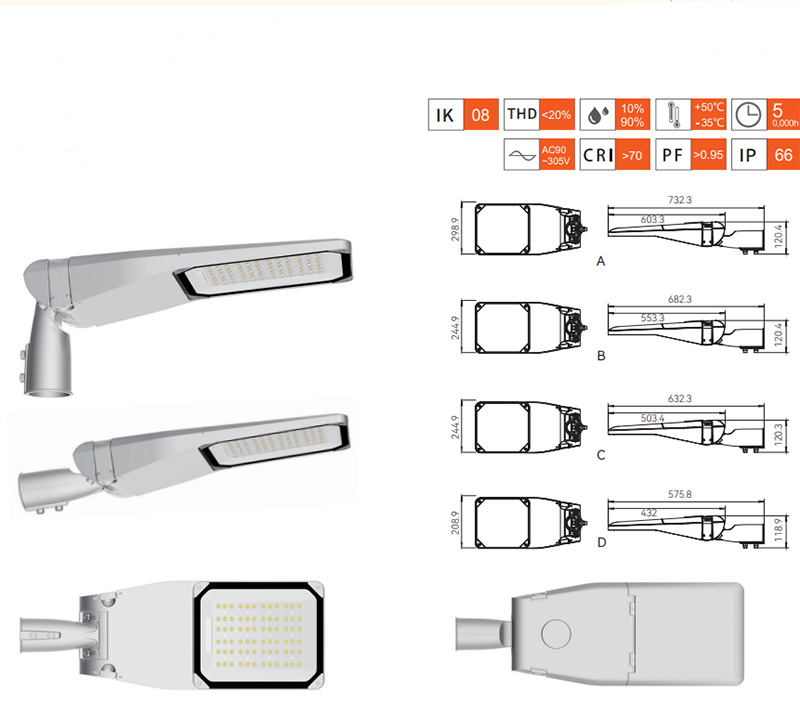

Product Size Chart
ຂໍ້ມູນຈໍາເພາະແລະຂະຫນາດ
| Model | EK-LD2301A | EK-LD2301B | EK-LD2301C | EK-LD2301D |
| ວັດແທກ | 150-240W | 100W-150W | 60W-100W | 20W-60W |
| Average Lumen | around 120 LM/W | around 120 LM/W | around 120 LM/W | around 120 LM/W |
| Chip Brand | LUMILEDS/CREE/SAN'AN | LUMILEDS/CREE/SAN'AN | LUMILEDS/CREE/SAN'AN | LUMILEDS/CREE/SAN'AN |
| Driver Brand | MW/PHILIPS/Inventronics | MW/PHILIPS/Inventronics | MW/PHILIPS/Inventronics | MW/PHILIPS/Inventronics |
| Power Factor | >0.95 | >0.95 | >0.95 | >0.95 |
| Voltage Range | 90V-305V | 90V-305V | 90V-305V | 90V-305V |
| Surge Protection(SPD) | 10KV/20KV | 10KV/20KV | 10KV/20KV | 10KV/20KV |
| Insulation Class | Class I / II | Class I / II | Class I / II | Class I / II |
| CCT. | 3000-6500K | 3000-6500K | 3000-6500K | 3000-6500K |
| CRI. | >70 | >70 | >70 | >70 |
| Working Temperature | (-35℃ to 50℃) | (-35℃ to 50℃) | (-35℃ to 50℃) | (-35℃ to 50℃) |
| ຫ້ອງຮຽນ IP | IP66 | IP66 | IP66 | IP66 |
| IK Class | ≥IK08 | ≥IK08 | ≥IK08 | ≥IK08 |
| Lifetime (Hours) | >50000 hours | >50000 hours | >50000 hours | >50000 hours |
| ວັດສະດຸ | Diecasting aluminium | Diecasting aluminium | Diecasting aluminium | Diecasting aluminium |
| Photocell base | With | With | With | With |
| Installation Spigot | 60/50mm | 60/50mm | 60/50mm | 60/50mm |
New Arrival 180W Street Led Manufacturer Outdoor Lighting Waterproof Aluminum LED Street Light
ShenZhen EKI Lighting Industrial Co., Ltd. ເປັນຜູ້ຜະລິດອາລູມິນຽມ Die-Casting LED ທີ່ພັກອາໄສທີ່ມີການອອກແບບແລະເຕັກໂນໂລຢີທີ່ພັດທະນາຂອງພວກເຮົາເອງ.
With Our High-Technology Machine such as, 250T 800T 1000T 1250T Die Casting Machine, CNC Machine, Well Managed production line and surface treatment facility. We becoming specialized in LED Streetlight Housing, LED Floodlight Housing, LED Highbay Heatsink, LED Empty Casting aluminum light housing.
