Perfect Combination of Practical Technology Optical LED street Light

Model Number : EK-LDC16
ຊື່​ຜະ​ລິດ​ຕະ​ພັນ: LED Street Light
ແນະນຳວັດ: : 50w 100w 150w 200w
Waterproof Index : IP66
ດັດຊະນີປ້ອງກັນແຜ່ນດິນໄຫວ: IK08 IK09
Working Temperature(℃): -20-50
Surface Color : RAL9007 (available on request)
Contain Accessories : Complete finished street lights

Application Scenario

  • Streets,Paths and bike lanes
  • Residential Street
  • Shared area, commercial
  • Urban streets
  • Rural roads,urban roads
  • Freeways and cicular raods

Technical Norm

General highlights

  1. Used for any outdoor lighting places such as roads, squares
  2. Working temperature: -30 。 C/+50 。 c
  3. Adopting buckle design for easy installation and maintenanceLumen
  4. Using high-quality chips
  5. Less light decay, long-lasting and durable
  6. Lamp poles with different calibers
  7. Excellent heat dissipation



Optical properties

  1. Different lens arrangements in different areas and installation
  2. Uniform light distribution
  3. Modular design of light source for easy replacement
  4. output(absolute metering): 100o0lm-400oolm
  5. Color temperature: 2200K-6500K
  6. Color rendering index:>70



Shell and Finis

  1. Corrosion resistant die cast aluminum casing Cancer-A Cancer-B
  2. Electrostatic powder coating
  3. Protection level: IP66
  4. Impact protection: IK09

Technical Parameter

Technical  Parameter
ModelEK-LDC16-50WEK-LDC16-100WEK-LDC16-150WEK-LDC16-200W
ພະລັງງານ50W100W150W200W
Input VoltageAC100-277V
Frequency Range50Hz/60Hz
Power Factor＞0.95
Whole Lighting Effect180lm/w
LED Lifespan50000H
Rendering IndexCRI70
ອຸນຫະພູມສີ2200K-6500K
IPIP66
IKIK09
Operation Temperatureminus 30+50℃
Storage Temperatureminus 20+60℃  10%-90%RH
ວັດສະດຸເລນPC LENS
Installation Height6-8mm6-8mm8-10mm10-12mm

Size

Street Lamp Series

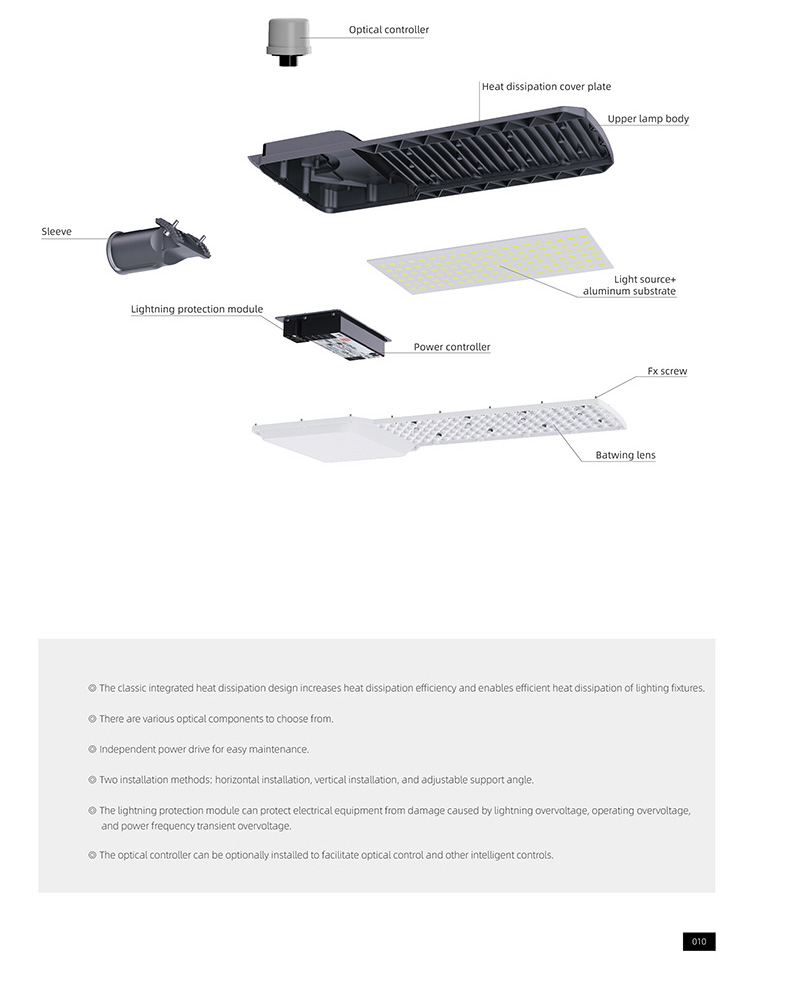

Strcture Display

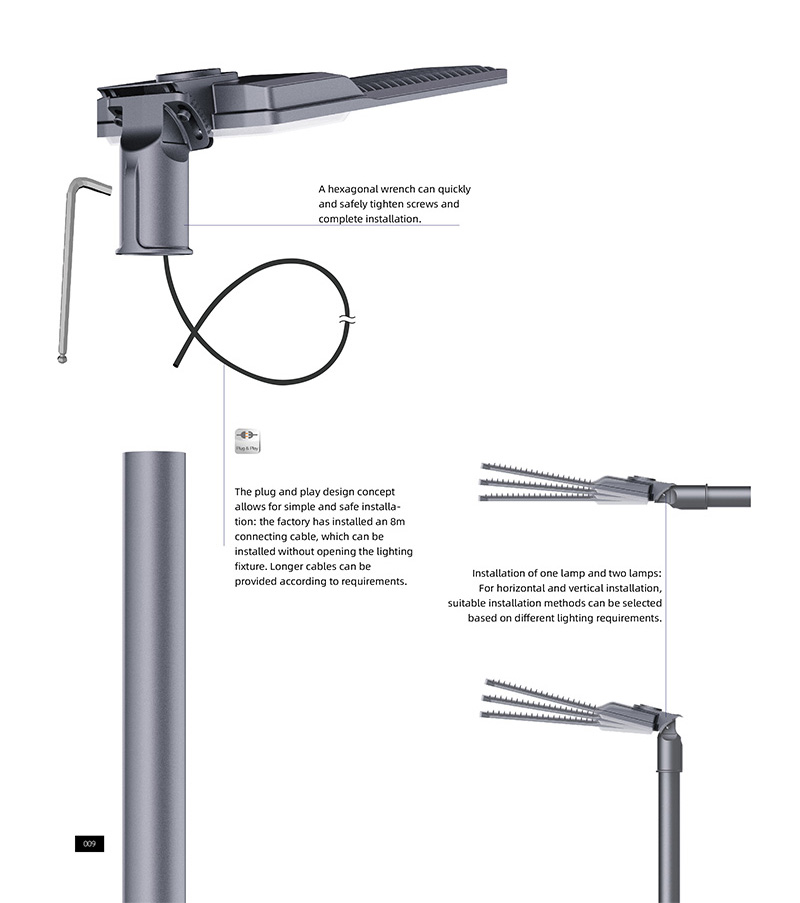

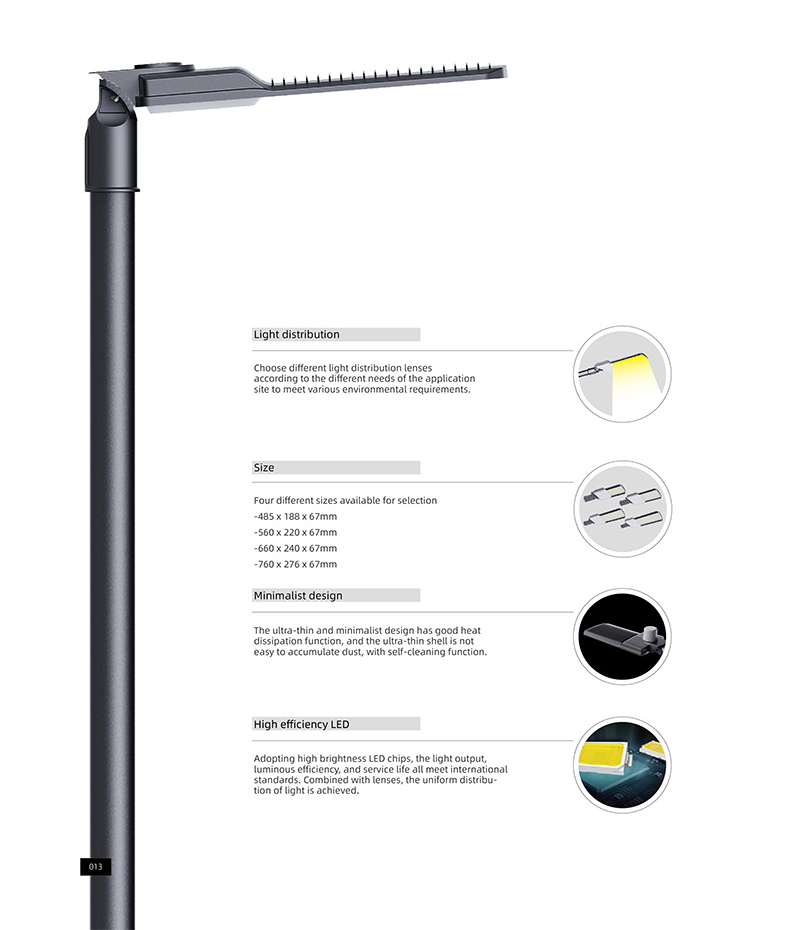

Detail Highlights

Intelligent Controller Design
